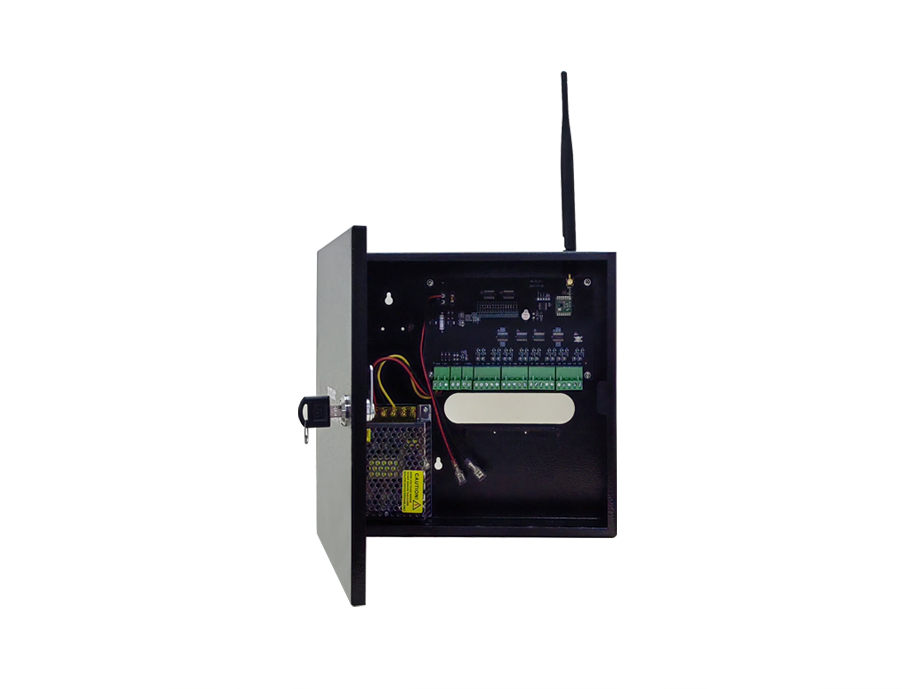

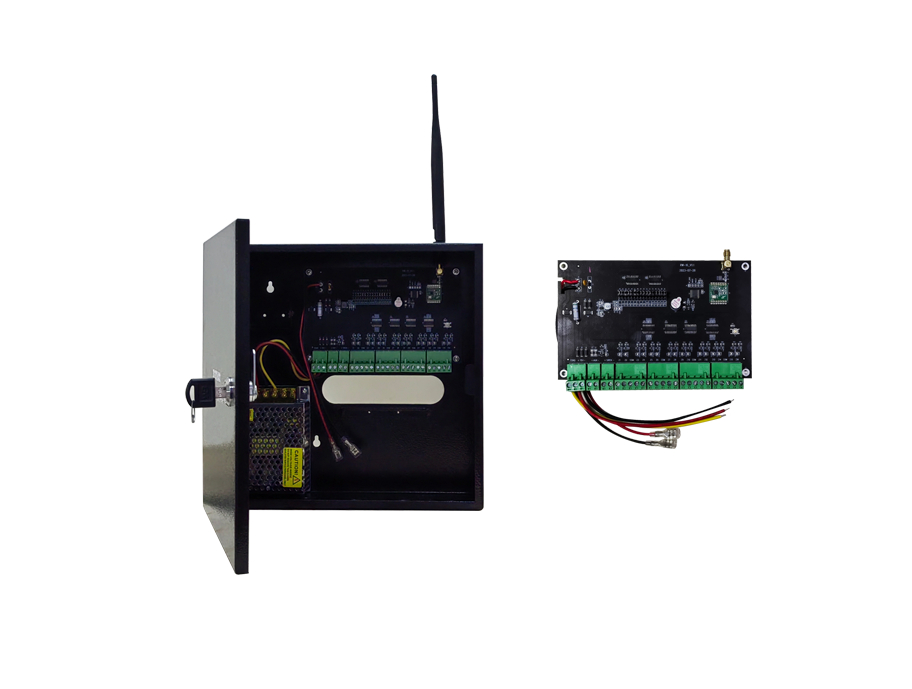

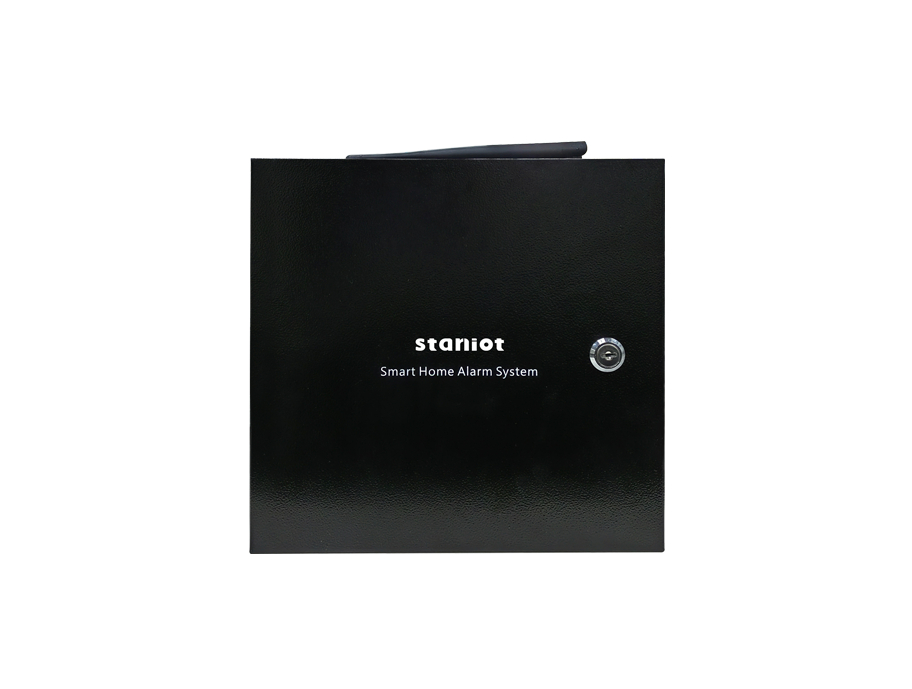

RW-16

Instant Wireless Modernization​​​​

​​​​Convert ​​16 wired zones to wireless​​ in under 30 seconds – no
rewiring needed
Preserve existing sensor investments while accessing
cutting-edge wireless technology

​​Intelligent Zone Management​​

Real-time monitoring: ​​16 independent LED indicators​​ show zone status at a glance
Flexible configuration: ​​NC/NO modes​​ adapt to any sensor type (door/window/PIR)
Remote control: Enable/disable zones via mobile app for dynamic
security adjustments

​​24/7 Reliability​​

Backup-ready: ​​12V battery interface​​ ensures continuous
operation during outages (battery sold separately)
Industrial durability: Operates in ​​-20°C to 55°C​​ extremes
(≤80% humidity)

Powerful Wireless Performance​​​​

​​150m open-range transmission​​ (433MHz OOK) for expansive
coverageUnified ecosystem: Directly pairs with sirens
(​​hold S1 for 2s​​) and alarm panels

Future-Proof Scalability​​

​​​​AUX output (​​15V/2A​​) powers additional wired devices
Siren output (​​15V/3A​​) triggers synchronized alarms across systems

​​Residential Retrofit​​

Upgraded our 90s-era security in 5 minutes without
replacing sensors

​​Commercial Cost Savings​​

Cut warehouse upgrade costs by 60% by reusing existing
wired zones

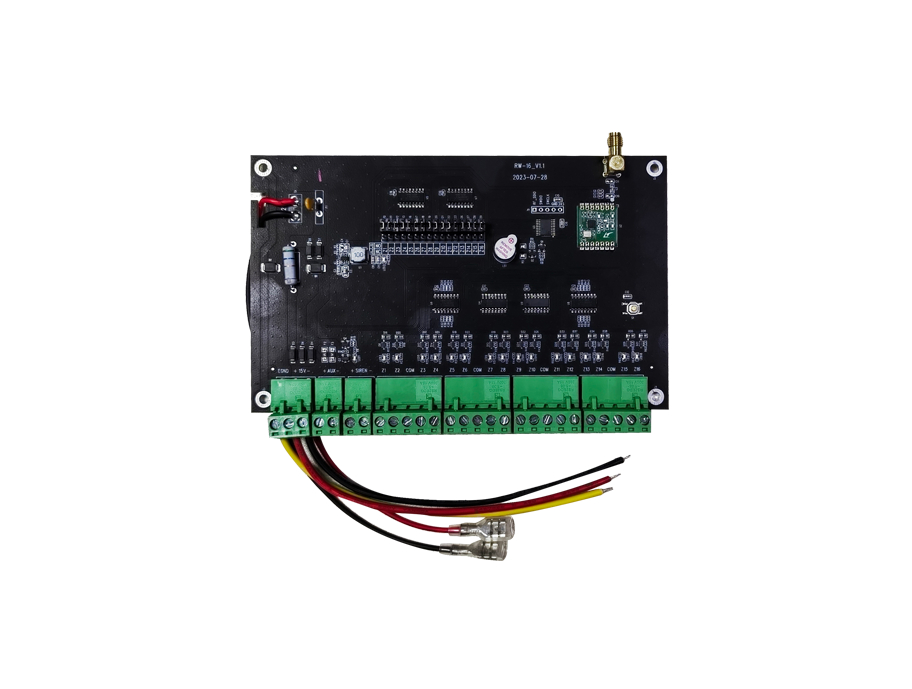

​16-Channel Wired-to-Wireless Conversion​​

​​Seamlessly connect 16 wired zones (Z1-Z16) to wireless
security systems
Shared COM terminals for every 4 zones – ​​no resistors required​​
Independent LED indicators for real-time zone status monitoring

​​Intelligent Power Management​​

​​Input​​: DC15V 5.0A (auto-alerts on power loss/restoration)
​​AUX Output​​: DC15V 2.0A (powers wired devices)
Siren Output​​: DC15V 3.0A (triggers alarms)
Backup battery interface (12V 7Ah, battery sold separately)

One-Touch Pairing​​

​​​​​​Zone Pairing​​: Press S1 to pair all 16 zones in <30 seconds
Siren Pairing​​: Hold S1 for 2s to connect wired sirens
Customize zone names/alarm modes (instant/delay/silent) via app

​​Installation Scenarios​​

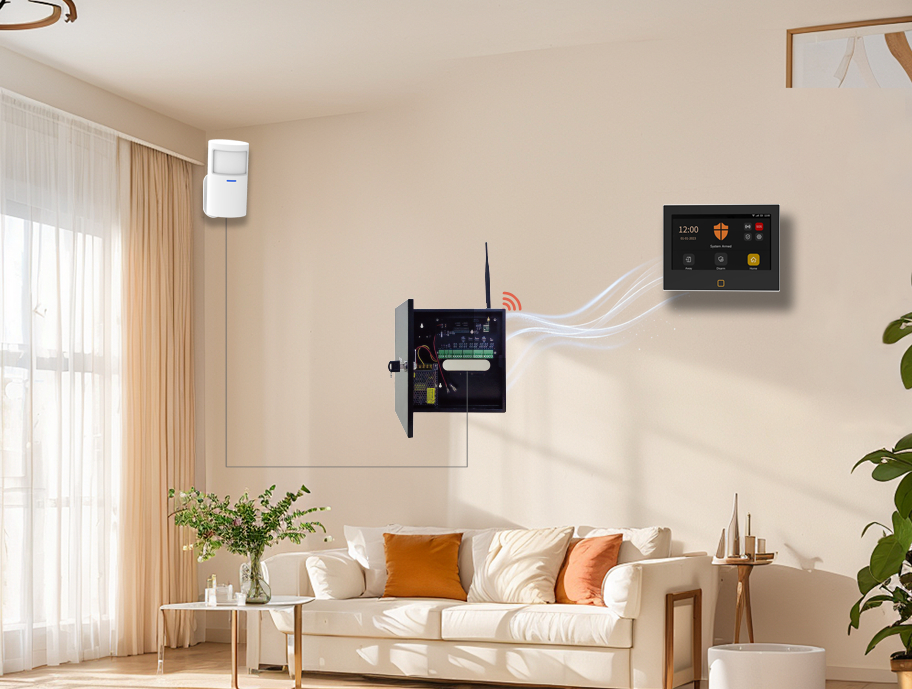

​​​Legacy Building Retrofit​​: Reuse existing wiring while
upgrading to wireless
​​Commercial Security​​: Cost-effective 16-zone support for
large premises
​​Critical Facilities​​: Backup-ready for 24/7 protection

​​Competitive Advantages​​​​

​​5-Minute Upgrade​​: Plug-and-play installation
​​Visual Status Control​​: 16-LED matrix for instant diagnostics
​​Dual Security​​: Power-failure alerts + battery backup
Smart Management​​: Enable/disable zones remotely via app

​​

​​Hardwired to Wireless Converter
​​Transform Legacy Security Systems with Zero Hassle​

​
